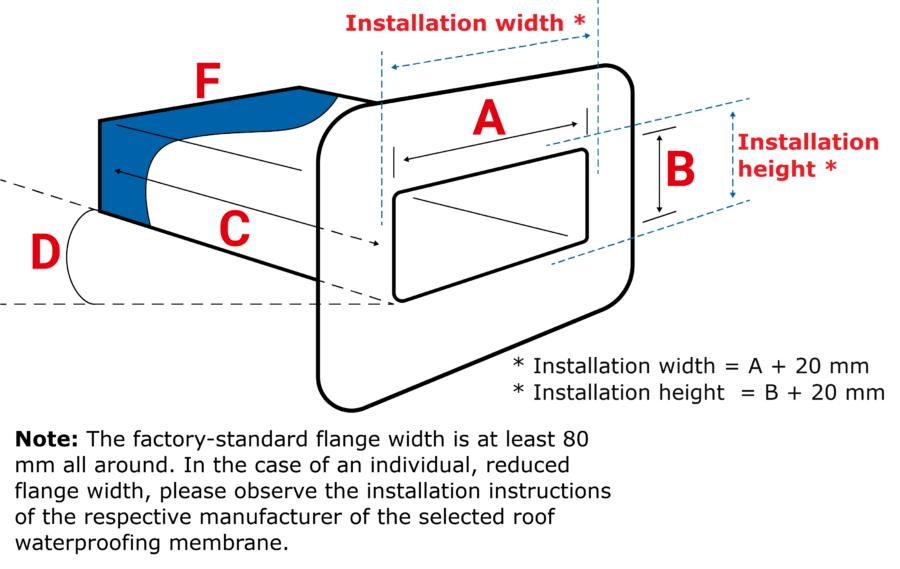

For planning purposes, please note that the inside inlet width and inlet height of the channel must be entered when configuring the “BIG” and “GIGANT”. The installation dimensions are calculated by adding 10 mm to the selected inlet widths and heights (sketch).

The following dimensions are possible for both “BIG” and “GIGANT” models:

• Inlet width: 120-1,000 mm (installation width: 140-1,020 mm)
• Inlet height: 75-200 mm (installation height: 95-220 mm)
• Channel length: up to max. 1,500 mm

When planning, please note that an individual inlet width of the channel up to a maximum of 1,000 mm is possible on the production side. The installation dimensions are calculated by adding 10 mm all round to the selected inlet widths and heights (sketch).

• Inlet width: 120-1,000 mm (installation width: 140-1,020 mm)

When planning, please note that an individual inlet height of up to 200 mm is possible on the production side. The installation dimensions are calculated by adding 10 mm to the selected inlet widths and heights (sketch).

• Inlet height: 75-200 mm (installation height: 95-220 mm)

Please note that a maximum length of 1,500 mm can be realised on the production side.

Please note that for products with a factory-fitted flange collar, a maximum accumulation height ‘E’ of 55 mm is generally possible. In the version without a flange collar, the accumulation height ‘E’ can also be requested > 55 mm.

Please note that a circumferential flange of approx. 80 mm is provided at the factory. Other flange dimensions are possible on request. Please enter this in the ‘Special requests, notes’ field.
